제품소개  제품 01

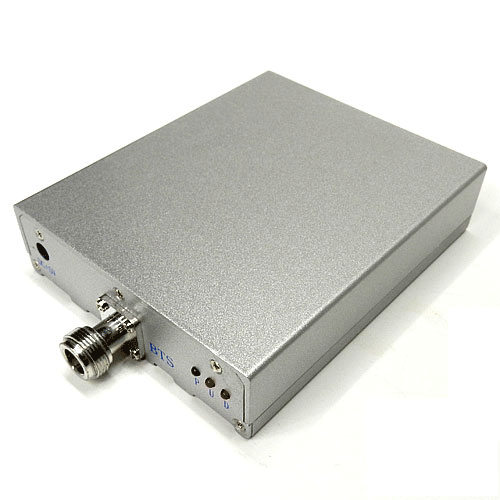

• 800Mhz Signal Repeater
• Item = TE-4101CA17
• Frequency Range (Mhz) = Uplink 806~811MHz / Downlink 851~856MHz
• Gain (dB) = Downlink :≥60dB
• Output Power (dBm) = ≥20dBm
• ALC = ≥20 dB
• Outer-band Spurious = <-40dBm
• Isolation = >60dB
• Standing wave = ≤1.35 dB
• band flatness = ≤+3dB
• Relay Phone = CDMA450M
• Install Methods = Lay/ Hanging(Indoor)
• Power supply = AC220V(Expert AC-DC Convertor)(Facility Power Supply:DC+5V)
• Size = 200mm(W)×142mm(D)×40mm(H)
• Weight = Approx. 1 kg
• Fittings = DC+27Vpower adapter ; Instruction
• High-reliability = Comply with GB6993-86 standard
• Electromagnetic Compatibility = Comply with ETS300 609-4 standard
