제품소개  제품 01

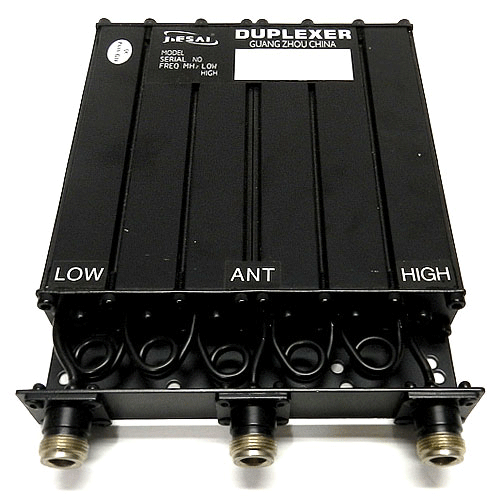

• Repeater Base Station Duplexer:30W
• N-Female connector 6 way Cavity 2 way radios VHF UHF Duplexer
• 30W RF Power Handling
• 6 Cavity Design
• Minimum Tx and Rx frequency difference: UHF 5MHz
• Maximum Tx and Rx frequency difference: UHF 20MHz
• Frequency Range: UHF 400-470MHz
• Bandwidth:±400kHz
• Standard Termination: N/BNC
• Frequency Spacing: 5-20MHz
• Insertion Loss:≤1.0dB
• Nominal Impedance: 50Ω
• V.S.W.R:≤1.3
• Suppression:>80
• Isolation:>80dB
• Free Frequency Tuning
• Easy to build your repeater
• Weight:1.2Kg
